進口閘閥
一、進口閘閥概述
品牌：美國歐可OKE

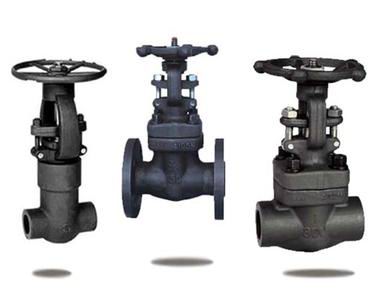

進口閘閥，American Standard cast steel gate valve，也叫美標API閘閥，美標ANSI閘閥，美標磅級閘閥，是指采用鑄鋼的閥體材質，制造和設計標準采用API或者ANSI的美國標準的閘閥，適用于ANSI Class 150~2500，工作溫度＜600℃的石油、化工、火力電站等各種工況的管路上，切斷或接通管路介質。適用介質為：水、油品、氣體用等。
二、進口美標閘閥參數
1、公稱壓力或壓力級： ANSI CLASS 150-1500LB、JIS10-20K
2、公稱通徑或口徑：DN25～1000、NPS 1/2 ～36"
3、連接方式：法蘭
4、適用溫度：-196℃～700℃
5、驅動方式：手動、傘齒輪傳動、氣動、電動、液動、氣液聯動、電液聯動
6、閥體材料：WCB、SS304\SS316或者其它特殊材質
7、適用介質：水、蒸汽、油品、硝酸、醋酸、氧化性介質、尿素等多種介質。
三、進口美標閘閥產品特點：
①美標閘閥產品設計制造符合美國國家標準ANSIB16.34，美國石油學會標準AP16D和API600要求。
②美標閘閥結構緊湊、體積小、剛性好、密封安全可靠。
③美標閘閥關閉件（閘板）采用彈性結構，在工作中能自動補償由于異常負荷或溫度引起的閥體變形。因此，密封可靠，并且不會產生閘板楔柱。
④美標閘閥公稱通徑大于等于NPS1011，壓力級400磅級和公稱通徑大于等于NPSS611、壓力級600～2500磅級的手動閥門，其操做裝置中配有滾動軸承，啟閉輕松。
⑤美標閘閥主體材料、內件材料、填料、墊片、緊固件的材料可根據用戶要求或實際工況條件合理組合。
⑥美標閘閥閥座可為更掀式閥座，可任意組合與關閉密封面材質配對，以滿足工況要求，延長使用壽命。
四、進口美標閘閥標準：
設計與制造 結構長度 法蘭尺寸 對焊連接尺寸 壓力溫度等級 試驗與檢驗
AP1 600 ANS1B16.10 ANS1B16.5a ANS1B16.25 ANS1B16.34 AP1598
五、進口美標鑄鋼閘閥壓力試驗：
公稱壓力 強度試驗 水密封試驗 氣密封試驗
MPa Lbf/in2 MPa Lbf/in2 MPa Lbf/in2
150 3.1 450 2.2 315 0.5～0.7 60～100
300 7.8 1125 5.6 815
600 15.3 2225 11.2 1630
900 23.1 3350 16.8 2440
1500 38.4 5575 28.1 4080
2500 64.6 9367 47.4 6873
Import gate valve
I. Overview of the imported gate valve
Brand: US Ouke OKE
Imported gate valve, American Standard cast steel gate valve, also known as American standard API gate valve, American standard ANSI gate valve, American standard pound gate valve, refers to the use of cast steel valve body material, manufacturing and design standards using API or ANSI American standard The gate valve is suitable for cutting and connecting the pipeline medium in the pipelines of various working conditions such as ANSI Class 150~2500 and working temperature <600 °C for petroleum, chemical and thermal power stations. Applicable medium: water, oil, gas, etc.
Second, the import of American standard gate valve parameters
1. Nominal pressure or pressure level: ANSI CLASS 150-1500LB, JIS10-20K
2, nominal diameter or caliber: DN25 ~ 1000, NPS 1/2 ~ 36"
3, connection method: flange
4, applicable temperature: -196 ° C ~ 700 ° C
5. Drive mode: manual, bevel gear transmission, pneumatic, electric, hydraulic, gas-liquid linkage, electro-hydraulic linkage
6, valve body material: WCB, SS304\SS316 or other special materials
7. Applicable medium: water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media.
Third, the import American standard gate valve product features:
1 American standard gate valve products are designed and manufactured in accordance with American National Standard ANSI B16.34, American Petroleum Institute standards AP16D and API600 requirements.
2 American standard gate valve is compact in structure, small in size, good in rigidity and safe and reliable in sealing.
3 American standard gate valve closing member (throttle plate) adopts elastic structure, which can automatically compensate the deformation of the valve body due to abnormal load or temperature during operation. Therefore, the seal is reliable and does not create a gate wedge.
4 American standard gate valve nominal diameter is greater than or equal to NPS1011, pressure class 400 pounds and nominal diameter is greater than or equal to NPSS611, pressure level 600 ~ 2500 pounds of manual valves, the operating device is equipped with rolling bearings, easy to open and close.
5 American standard gate valve body materials, internal materials, fillers, gaskets, fasteners materials can be reasonably combined according to user requirements or actual working conditions.
6 American standard gate valve seat can be a more sturdy valve seat, which can be matched with the material of the closed sealing surface to meet the working conditions and prolong the service life.
Fourth, the import of American standard gate valve standards:
Design and manufacture Structural length Flange size Butt joint size Pressure temperature grade Test and inspection
AP1 600 ANS1B16.10 ANS1B16.5a ANS1B16.25 ANS1B16.34 AP1598
V. Imported American Standard Cast Steel Gate Valve Pressure Test:
Nominal pressure strength test water seal test gas seal test
MPa Lbf/in2 MPa Lbf/in2 MPa Lbf/in2
150 3.1 450 2.2 315 0.5~0.7 60～100
300 7.8 1125 5.6 815
600 15.3 2225 11.2 1630
900 23.1 3350 16.8 2440
1500 38.4 5575 28.1 4080
2500 64.6 9367 47.4 6873
 |
